reservoirpy.nodes.LIF#

class reservoirpy.nodes.LIF( units: int | None = None, inhibitory: float = 0.0, threshold: float = 1.0, lr: float = 0.0, sr: float = 1.0, input_scaling: float | ~typing.Sequence = 1.0, rc_connectivity: float = 0.1, input_connectivity: float = 0.1, Win: ~numpy.ndarray | ~scipy.sparse._base.sparray | ~typing.Callable = functools.partial(_uniform(), low=0.0), W: ~numpy.ndarray | ~scipy.sparse._base.sparray | ~typing.Callable = functools.partial(_uniform(), low=0.0), input_dim: int | None = None, dtype: type = <class 'numpy.float64'>, seed: int | ~numpy.random._generator.Generator | None = None, name: str | None = None, )[source]#

Pool of leaky integrate and fire (LIF) spiking neurons with random recurrent connexions.

This node is similar to a reservoir (large pool of recurrent, randomly connected neurons), but the neurons follows a leaky integrate and fire activity rule.

Parameters:

units (int, optional) – Number of reservoir units. If None, the number of units will be inferred from the W matrix shape.
inhibitory (float, defaults to 0.0) – Proportion of neurons that have an inhibitory behavior (i.e. negative outgoing connections). Must be in \([0, 1]\)
threshold (float, defaults to 1.0) – Limits above which the neurons spikes and returns to zero.
lr (float or array-like of shape (units,), default to 1.0) – Neurons leak rate. Must be in \([0, 1]\).
sr (float, defaults to 1.0) – Spectral radius of recurrent weight matrix.
input_scaling (float or array-like of shape (features,), default to 1.0.) – Input gain. An array of the same dimension as the inputs can be used to set up different input scaling for each feature.
rc_connectivity (float, defaults to 0.1) – Connectivity of recurrent weight matrix, i.e. ratio of reservoir neurons connected to other reservoir neurons, including themselves. Must be in \(]0, 1]\).
input_connectivity (float, default to 0.1) – Connectivity of input neurons, i.e. ratio of input neurons connected to reservoir neurons. Must be in \(]0, 1]\).
Win (callable or array-like of shape (units, features), default to uniform() with a) – lower bound of 0.0. Input weights matrix or initializer. If a callable (like a function) is used, then this function should accept any keywords parameters and at least two parameters that will be used to define the shape of the returned weight matrix.
W (callable or array-like of shape (units, units), defaults to uniform() with) – a lower bound of 0.0. Recurrent weights matrix or initializer. If a callable (like a function) is used, then this function should accept any keywords parameters and at least two parameters that will be used to define the shape of the returned weight matrix.
input_dim (int, optional) – Input dimension. Can be inferred at first call.
dtype (Numpy dtype, default to np.float64) – Numerical type for node parameters.
seed (int or numpy.random.Generator, optional) – A random state seed, for noise generation.
name (str, optional) – Node name.

Note

If W, Win, bias or Wfb are initialized with an array-like matrix, then all initializers parameters such as spectral radius (sr) or input scaling (input_scaling) are ignored. See mat_gen for more information.

Example

>>> from reservoirpy.nodes import LIF
>>> liquid = LIF(
...     units=100,
...     inhibitory=0.1,
...     sr=1.0,
...     lr=0.2,
...     input_scaling=0.5,
...     rc_connectivity=1.0,
...     input_connectivity=1.0,
...     seed=0,
... )

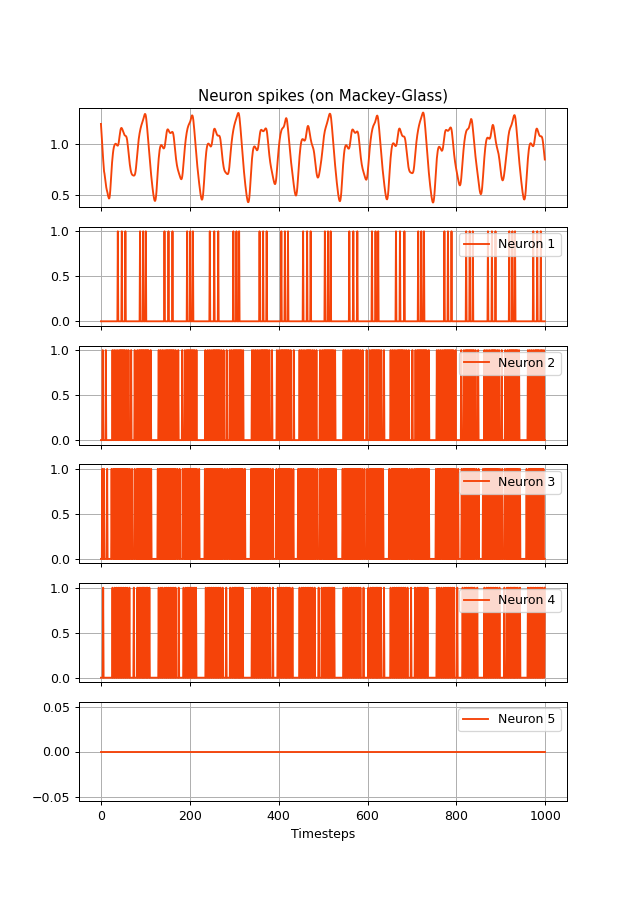

Using the mackey_glass() timeseries:

>>> from reservoirpy.datasets import mackey_glass
>>> x = mackey_glass(1000)
>>> spikes = liquid.run(x)

../../_images/reservoirpy-nodes-LIF-1.png

Methods

`__init__`([units, inhibitory, threshold, lr, ...])
`initialize`(x[, y])	Define input and output dimensions, and instantiate variables.
`predict`([x, iters, workers])	Alias for `run()`
`reset`()	Reset all Node state
`run`([x, iters, workers])	Run the Node on a sequence of data.
`step`([x])	Call the Node function on a single step of data and update the state of the Node.

Attributes

`initialized`	True if the Node has been initialized
`input_dim`	Expected dimension of the Node input.
`name`	Optional name of the Node.
`output_dim`	Expected dimension of the Node input.
`units`	Number of neuronal units in the reservoir.
`inhibitory`	Proportion of inhibitory neurons.
`threshold`	Spike threshold.
`dtype`	Type of matrices elements.
`lr`	Leaking rate (1.0 by default) (\(\mathrm{lr}\)).
`sr`	Spectral radius of `W` (optional).
`input_scaling`	Input scaling (float or array) (1.0 by default).
`input_connectivity`	Connectivity (or density) of `Win` (0.1 by default).
`rc_connectivity`	Connectivity (or density) of `Wfb` (0.1 by default).
`Win`	Input weights matrix (\(\mathbf{W}_{in}\)).
`W`	Recurrent weights matrix (\(\mathbf{W}\)).
`rng`	A random state generator.
`state`	Current state of the Node.

W: ndarray | sparray | Callable#: Recurrent weights matrix (\(\mathbf{W}\)).

Win: ndarray | sparray | Callable#: Input weights matrix (\(\mathbf{W}_{in}\)).

dtype: type#: Type of matrices elements. By default, np.float64.

inhibitory: float#: Proportion of inhibitory neurons. (0.0 by default)

initialize( x: Array2D | Array3D | Sequence[Timeseries] | Array1D | None, y: None = None, )[source]#

Define input and output dimensions, and instantiate variables.

Only called once, before fitting or running the node.

Parameters:

x (array of shape (input_dim,) or (timestep, input_dim)) – Input data to the node.
y (None) – Training data to the node. As it is not a trainable node, y is expected to be None.

initialized: bool = False#: True if the Node has been initialized

input_connectivity: float#: Connectivity (or density) of Win (0.1 by default).

input_dim: int = None#: Expected dimension of the Node input. Can be None before initialization

input_scaling: float | Sequence#: Input scaling (float or array) (1.0 by default).

lr: float | ndarray#: Leaking rate (1.0 by default) (\(\mathrm{lr}\)).

name: str | None = None#: Optional name of the Node.

output_dim: int = None#: Expected dimension of the Node input. Can be None before initialization

Alias for run()

Run the Node on a sequence of data. Can update the state of the Node several times.

Parameters:

x (array-like of shape ([n_inputs,] timesteps, input_dim) or list of) – arrays of shape (timesteps, input_dim), optional A sequence of data of shape (timesteps, features).
iters (int, optional) – If x is None, a dimensionless timeseries of length iters is used instead.
workers (int, default to 1) – Number of workers used for parallelization. If set to -1, all available workers (threads or processes) are used.

Returns:

A sequence of output vectors.

Return type:

array of shape ([n_inputs,] timesteps, output_dim) or list of arrays

rc_connectivity: float#: Connectivity (or density) of Wfb (0.1 by default).

reset() → dict[str, ndarray][source]#

Reset all Node state

Returns:: dict[str, np.array]
Return type:: previous state of the Node.

rng: Generator#: A random state generator. Used for generating Win and W.

Run the Node on a sequence of data. Can update the state of the Node several times.

Parameters:

x (array-like of shape ([n_inputs,] timesteps, input_dim) or list of arrays of shape (timesteps, input_dim), optional) – A timeseries, array of shape (timesteps, features), or a sequence of timeseries. Input of the Node.
iters (int, optional) – If x is None, a dimensionless timeseries of length iters is used instead.
workers (int, default to 1) – Number of workers used for parallelization. If set to -1, all available workers (threads or processes) are used.

Returns:

A sequence of output vectors.

Return type:

array of shape ([n_inputs,] timesteps, output_dim) or list of arrays

sr: float#: Spectral radius of W (optional).

state: dict[str, ndarray]#: Current state of the Node. Must have “out” as one of the keys.

step(x: array(d) | None = None)[source]#

Call the Node function on a single step of data and update the state of the Node.

Parameters:: x (array of shape (input_dim,), optional) – One single step of input data. If None, an empty array is used instead and the Node is assumed to have an input_dim of 0
Returns:: An output vector.
Return type:: array of shape (output_dim,)

threshold: float#: Spike threshold. (1.0 by default)

units: int#: Number of neuronal units in the reservoir.
