reservoirpy.datasets.mackey_glass#

reservoirpy.datasets.mackey_glass(
n_timesteps: int,
tau: int = 17,
a: float = 0.2,
b: float = 0.1,
n: int = 10,
x0: float = 1.2,
h: float = 1.0,
seed: None | int | RandomState | Generator = None,
history: None | ndarray = None,
**kwargs,
) → ndarray[source]#

Mackey-Glass timeseries [8] [9], computed from the Mackey-Glass delayed differential equation.

\[\frac{x}{t} = \frac{ax(t-\tau)}{1+x(t-\tau)^n} - bx(t)\]
Parameters:

  • n_timesteps (int) – Number of timesteps to compute.

  • tau (int, default to 17) – Time delay \(\tau\) of Mackey-Glass equation. By defaults, equals to 17. Other values can change the chaotic behaviour of the timeseries.

  • a (float, default to 0.2) – \(a\) parameter of the equation.

  • b (float, default to 0.1) – \(b\) parameter of the equation.

  • n (int, default to 10) – \(n\) parameter of the equation.

  • x0 (float, optional, default to 1.2) – Initial condition of the timeseries.

  • h (float, default to 1.0) – Time delta between two discrete timesteps.

  • seed (int or numpy.random.Generator, optional) – Random state seed for reproducibility.

  • history (array of shape (T, ), optional) – Past timesteps used to “warmup” the process. T must be greater than tau//h. If None, a random history is generated.

Return type:

ndarray

Examples

>>> from reservoirpy.datasets import mackey_glass
>>> timeseries = mackey_glass(1000)
>>> timeseries.shape
(1000, 1)

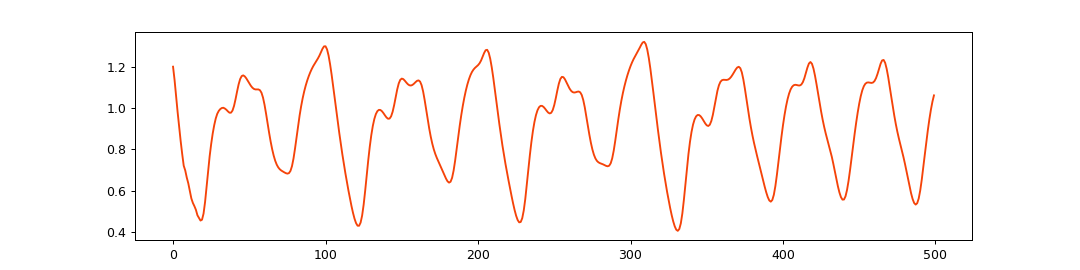

../../_images/reservoirpy-datasets-mackey_glass-1.png
Returns:

Mackey-Glass timeseries.

Return type:

array of shape (n_timesteps, 1)

Parameters:

Note

As Mackey-Glass is defined by delayed time differential equations, the first timesteps of the timeseries can’t be initialized at 0 (otherwise, the first steps of computation involving these not-computed-yet-timesteps would yield inconsistent results). A random number generator is therefore used to produce random initial timesteps based on the value of the initial condition passed as parameter. A default seed is hard-coded to ensure reproducibility in any case. It can be changed with the set_seed() function.

References
